Mechanical Gifs Catalog

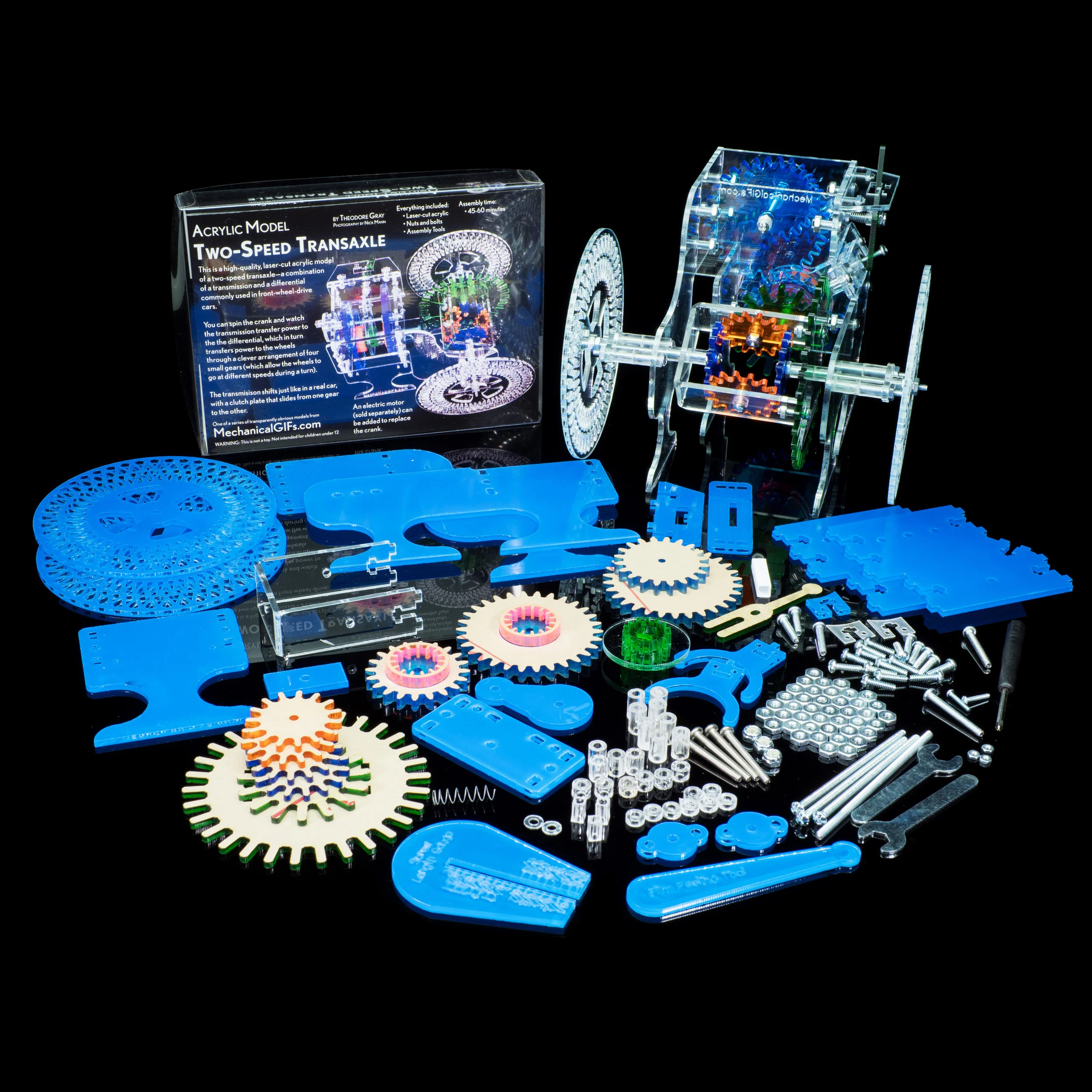

Each of the models below is available as a high-quality, laser-cut acrylic model in either kit or fully assembled form. All models come attractively packaged with everything needed to finish the model (even a screwdriver). No special model-assembly skills are needed: the models just screw together in typically 15-20 minutes.

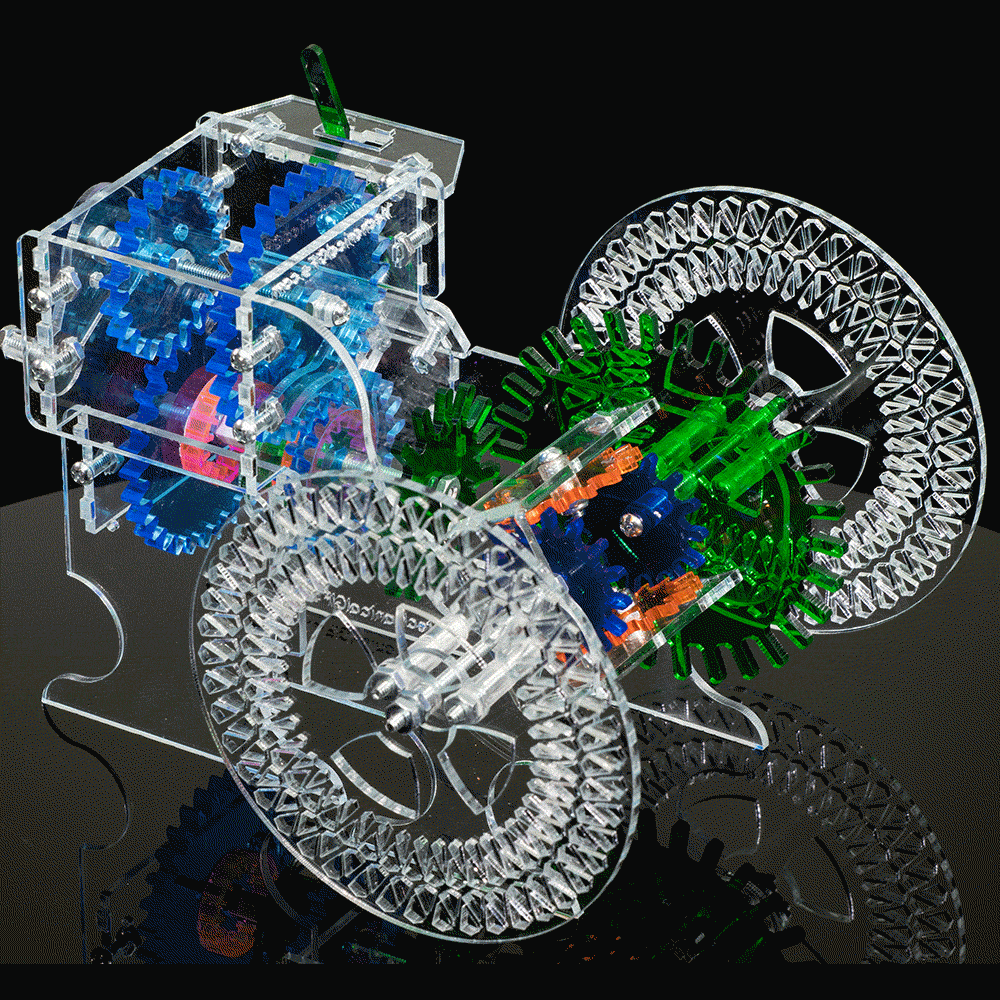

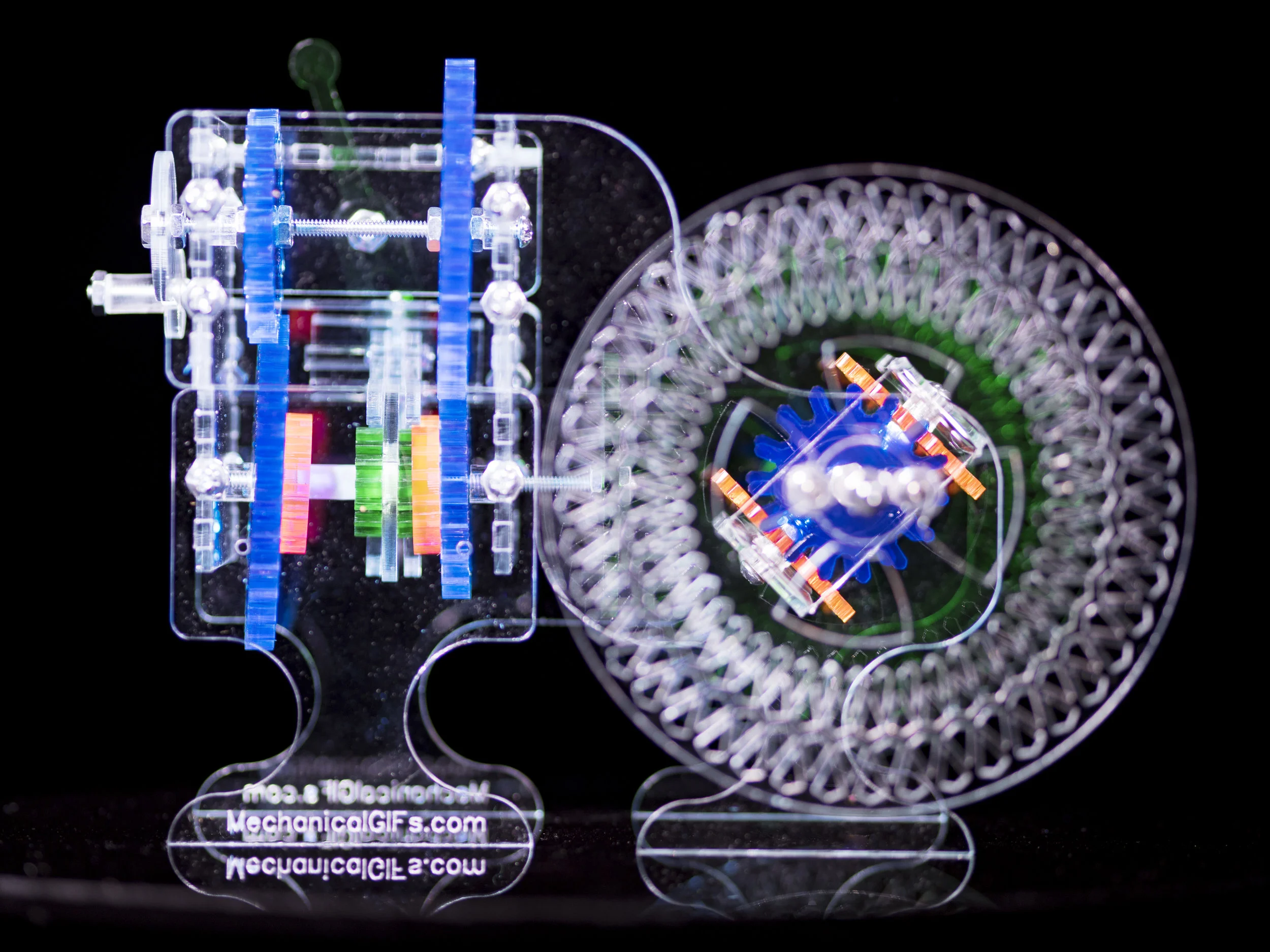

Two-Speed Transaxle

Two-Speed Transaxle

from 89.99

This transaxle model combines the functions of a Transmission and a Differential (both available as separate kits). Transaxles are typically found in cars where the engine is at the same end of the car as the motor: they are more compact that the two component separately.

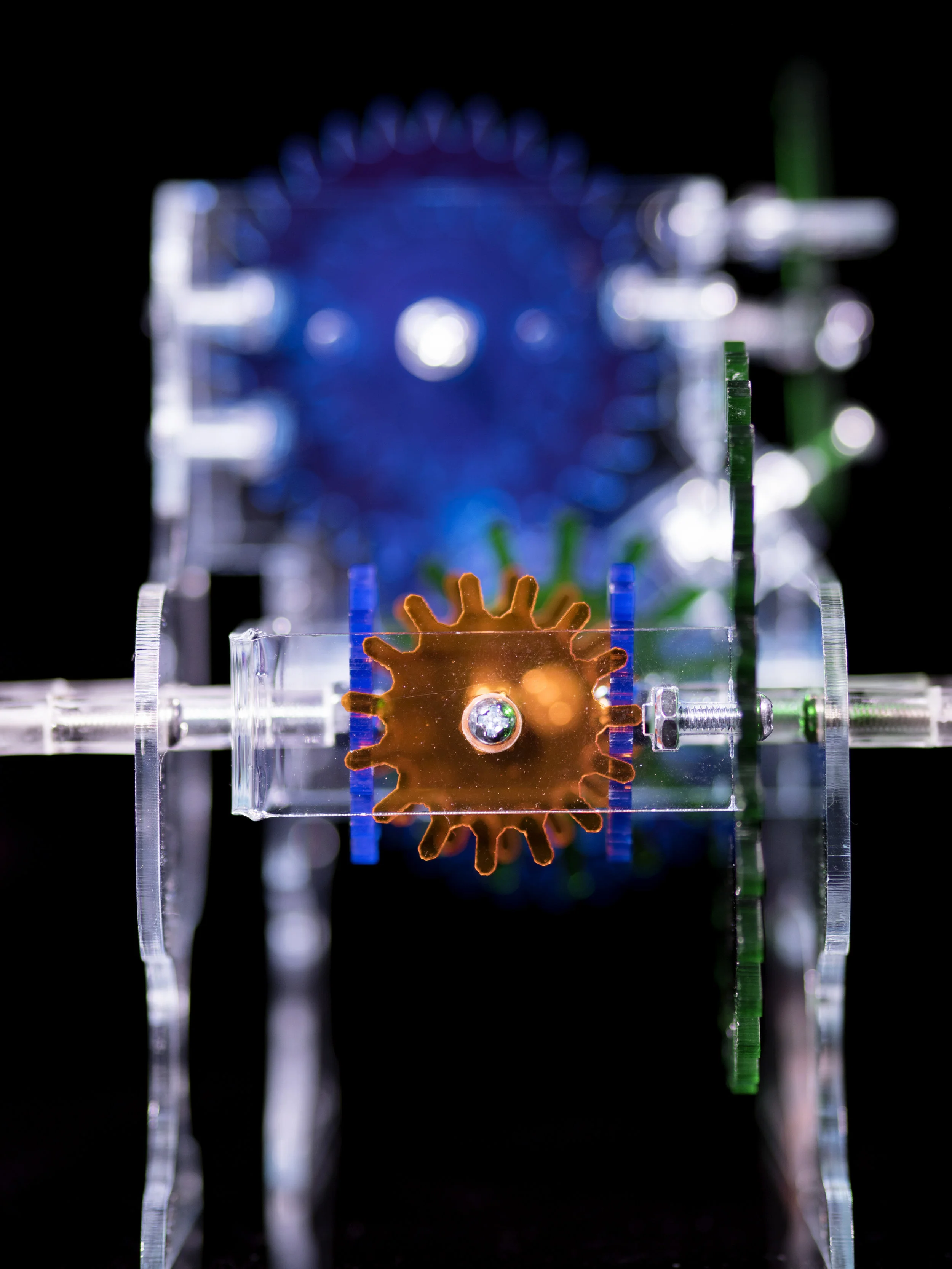

The transmission portion of this model implements a two-speed automotive-style transmission complete with shift lever, forks, and two dog clutches for engaging and disengaging the high and low gears. The differential portion uses a clever arrangement of four gears to allow the two drive wheels to spin a different speeds, even though they are being powered by a single drive shaft. Turning at different speeds is necessary to go around a corner, where the outside wheel needs to travel farther, and thus turn faster, than the inside wheel.

We offer a Electric Motor Add-on to electrify this model and make it run on its own. The core of this model is also included in the Radial Engine Car model.

Form:
Electric Motor:
Quantity:
Add To Cart
